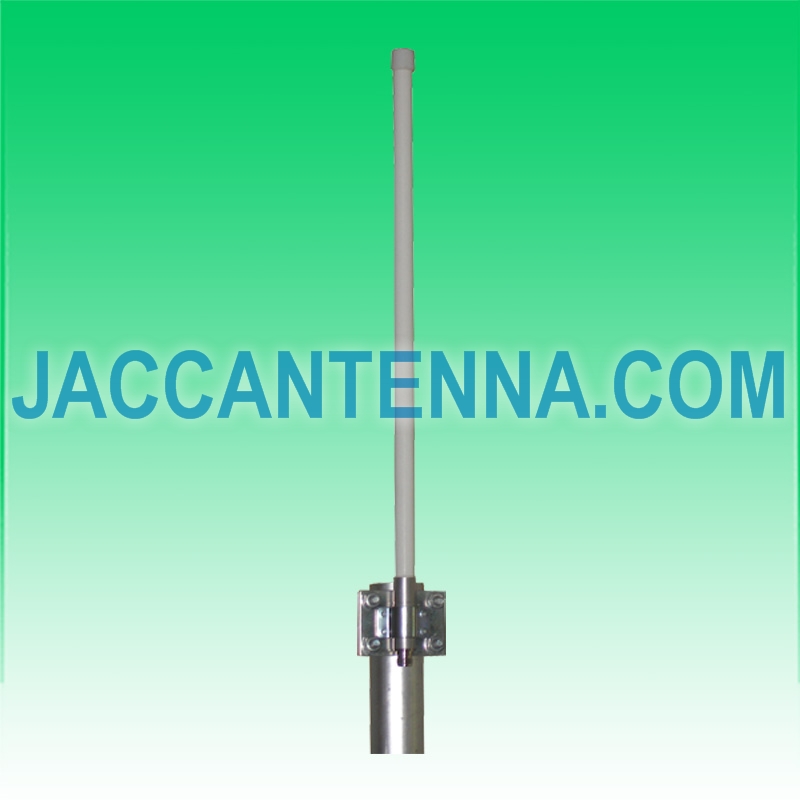

3400-3600 MHz 11 dBi Vertical Polarity Omni-directional Antenna
J3500O11



   Antenna Model No. J3500O11
   Frequency Range  3400 - 3600 MHz
   Bandwidth 200 MHz
   Gain 11 dBi
   Horizontal Beamwidth 360°
   Vertical Beamwidth 9.5°
   VSWR   1.5
   Nominal Impedance 50 Ohms
   Maximum Power 100 Watts
   Polarization Vertical
   Connector N Female
   Length (Height) 31.5 / 800 mm
   Wind Load 120 mph / 60 m/s
   Radome Fiberglass
   Mast Mount Diameter 1.6" - 2.0" / 40 - 50 mm
   Operating Temperature  -22°F to 140°F / -30°C to 60°C
